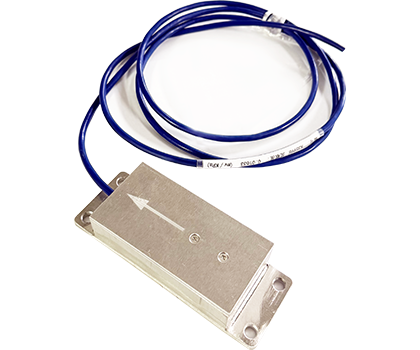

Friction Sensor
Friction Sensor
The AZMC-A series friction sensor is used to measure the friction between the surface and slurry during load tests on concrete structures.
Basic functions
- Dimensions: 32.5 x 50 x 100 mm (140 mm in length including the mounting part)
- Measurement Range: 100 kPa
- Response Frequency: ≤ 800 Hz
- Effective Friction Area: 100 mm (L) x 50 mm (W)
- Insulation Resistance: ≥ 1000 MΩ
- Service Life: Theoretical lifespan of 10 million cycles; subject to actual testing conditions
- Overload Capacity: 120%
