Digital monitoring of uneven settlement
Digital monitoring of uneven settlement
Wireless digital real-time monitoring, high precision, high reliability, by cascading static level or electronic displacement ruler to achieve uneven settlement monitoring, can be recycled.
Scheme 1

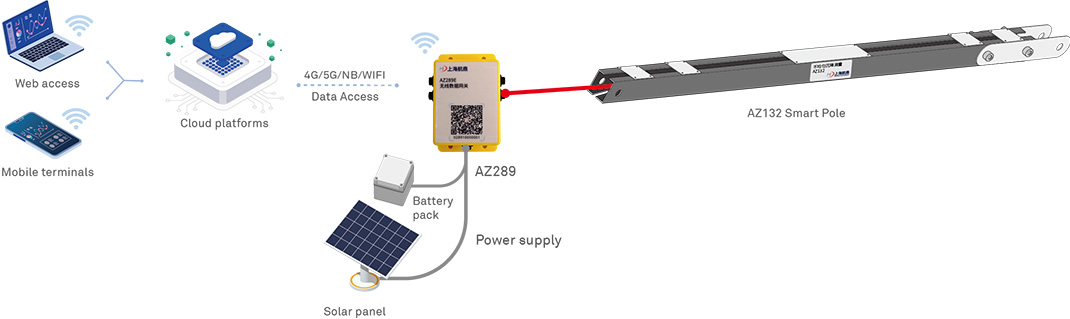

The system consists of a wireless data gateway (AZ289) and an electronic displacement ruler (AZ132). AZ289 series wireless data gateway integrates power supply, acquisition and transmission, ultra-low power consumption, built-in battery, and can be quickly deployed and used. AZ132 series electronic displacement ruler is suitable for soil/wall/structure deformation monitoring, high stability, high accuracy, aluminum alloy structure, strong anti-corrosion ability. IP68 waterproof with a maximum cascade length of 200 meters.
Scheme 2

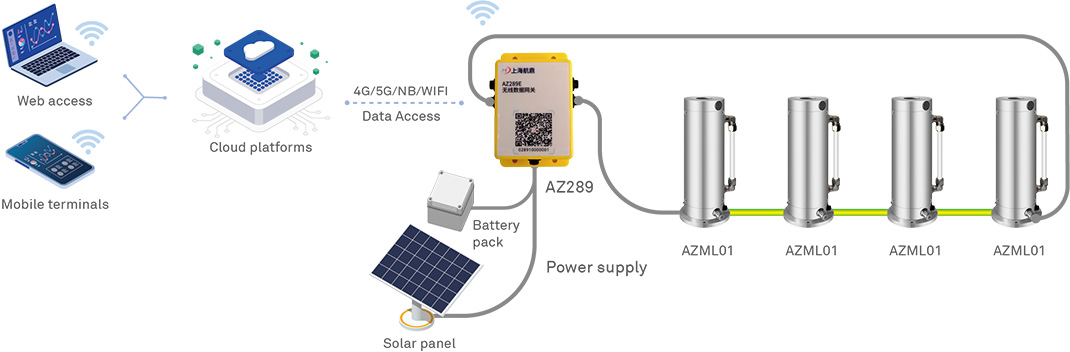

The system consists of a magnetostrictive static level (AZML01 series) and a wireless data gateway (AZ289). AZ289 series wireless data gateway integrates power supply, acquisition and transmission, ultra-low power consumption, built-in battery, and can be quickly deployed and used. AZML01 series static level all-aluminum alloy tank, corrosion resistance, magnetostrictive measurement mode, stable measurement, high accuracy, minus 40°C to 80°C normal operation.
Attention: If high-frequency real-time monitoring data collection is required, solar panels can be optionally equipped for power supply.
Hardware
SMART POLE(Inhomogeneous settlement)
- Accuracy:0.1mm⁄m
- Can be cascaded for use
- 200 meter waterproof level
- High reliability, multi-channel redundant transmission, smart pole cable protection
- High sensitivity, smart pole buried installation
- Convenient installation, easy maintenance, and maintenance free
- Ultra low energy consumption
Wireless data gateways
- Dimensions: 147 x 90 x 51 mm
- Power supply, collection and transmission are integrated
- A single channel supports the connection of 48 sensors and supporting smart measuring rods
- 1-channel DO control port output, 1-channel AI signal data acquisition interface
- 2-channel RS485 data acquisition
- NB/4G/WIFI multiple transmissions
- Optional Beidou satellite timing positioning
- Ultra-low power consumption, fully built-in battery, twice a day, continuous use for more than one year
- Directly connected to 6~30W solar panel for power supply, sustainable work
- IP67
Software
Electronic map + Beidou positioning + cloud computing
Application cases
Zhangyuan Protective Comprehensive Development Project
Zhejiang Electronic Factory Construction Project
Hangzhou Power Pipeline Uneven Settlement Monitoring Project
