Digital monitoring of horizontal displacement of deep soil
Digital monitoring of horizontal displacement of deep soil
Wireless digital real-time monitoring, high precision, high reliability, low comprehensive cost, deep foundation pit wall/soil monitoring within 200 meters, recyclable.
Scheme 1

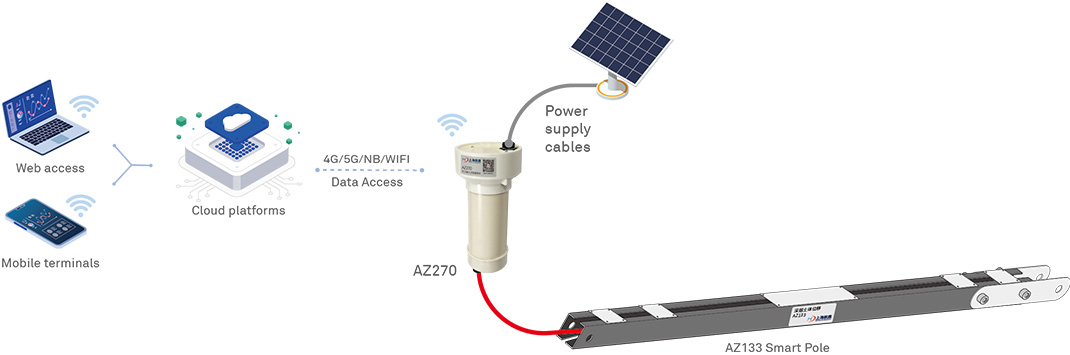

The system consists of AZ270 series orifice embedded data gateway and AZ133 series intelligent measuring rod. The AZ270 series orifice embedded data gateway can be installed at the mouth of the water level pipe or inclinometer tube without exposing the ground. The product integrates power supply, collection and transmission, and can be quickly deployed and used. For low-frequency collection, the machine comes with a battery to support long-term use. AZ133 series deep soil horizontal displacement measurement module is equipped with smart rod, which is convenient for system integration and maintenance; The combination of the two can be applied to wall/soil deformation monitoring.
Scheme 2

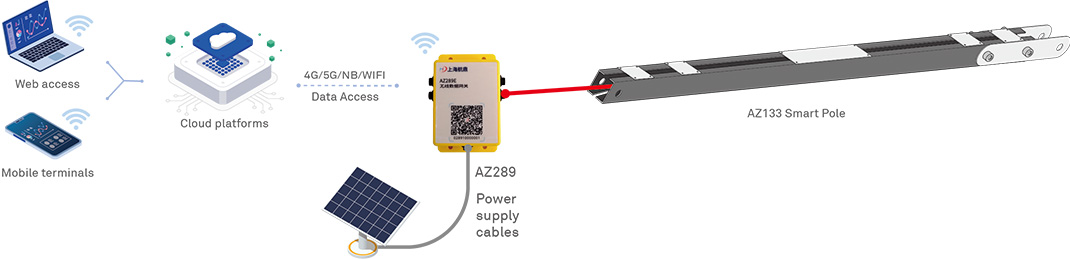

The system consists of AZ289 series wireless data gateway and AZ133 series smart measuring rod. AZ289 series wireless data gateway supports dual-channel data collection, and the product integrates power supply, acquisition and transmission, which can be quickly deployed and used. Ultra-low power consumption with built-in battery.
Attention: If high-frequency real-time monitoring data collection is required, solar panels can be optionally equipped for power supply.
Hardware
SMART POLE (Deep horizontal displacement)
- Accuracy:0.1mm⁄m
- Can cascade up to 200 meters
- Supports NB⁄4G⁄WIFI multiple wireless methods
- Installation of inclinometer or direct burial
- High reliability, multi-channel redundant transmission
- High sensitivity, multiple connection methods
- Convenient installation, easy maintenance, and maintenance free
- Ultra low energy consumption.
Orifice embedded data gateway
- Dimensions: Φ 63 x 120 mm
- Power supply, collection and transmission are integrated
- 1 AD interface for connecting 4 to 20mA current transmitters
- 1 RS485 interface, with power supply output, support to connect RS485 interface sensors
- Built-in antenna, NB/4G and other wireless communication methods are optional
- Ultra-low power consumption, fully built-in battery, continuous use twice a day for more than one year
- Support direct power supply from solar panels
- IP68
Wireless data gateways
- Dimensions: 147 x 90 x 51 mm
- Power supply, collection and transmission are integrated
- A single channel supports the connection of 48 sensors and supporting smart measuring rods
- 1-channel DO control port output, 1-channel AI signal data acquisition interface
- 2-channel RS485 data acquisition
- NB/4G/WIFI multiple transmissions
- Optional Beidou satellite timing positioning
- Ultra-low power consumption, fully built-in battery, twice a day, continuous use for more than one year
- Directly connected to 6~30W solar panel for power supply, sustainable work
- IP67
Software
Electronic map + Beidou positioning + cloud computing
Application cases

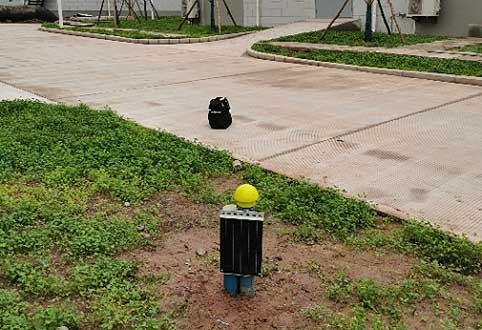

Monitoring projects for major highway tunnels in Shanghai

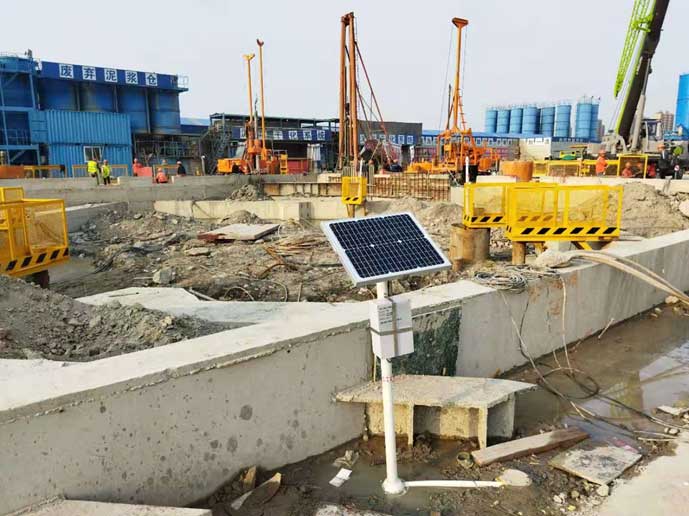

Shanghai Municipal Railway Monitoring Project

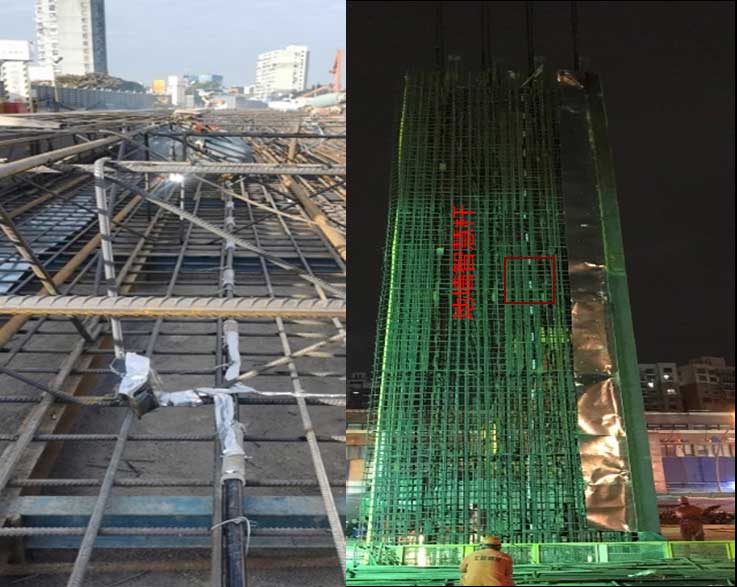

Sichuan Water Plant Construction and Operation Monitoring Project
