Centralized high-frequency wireless transmission solutions
Centralized high-frequency wireless transmission solutions
- Monitoring of inclination, cracks, and misalignment
- Real time monitoring, high-frequency transmission, suitable for large-scale high-frequency acquisition and monitoring in local areas
- NB/4G/WIFI wireless transmission
- RS485 bus data acquisition
- Keep monitoring records of 300 times before power outage
- Standard bracket adhesive installation or smart pole punching installation
- Multiple power supply methods: solar energy, external power, or battery pack power supply
- IP68 waterproof, water ingress monitoring and power outage alarm
- Easy to install and maintenance free
Attention: If high-frequency real-time monitoring data collection is required, solar panels can be optionally equipped for power supply.
Hardware

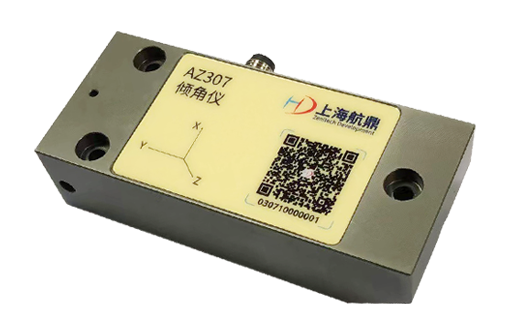

VIBRATION/TILT SENSOR
- Dimensions:92 x 40 x 25 mm
- Real-time monitoring of vibration and inclination, high-frequency acquisition and transmission
- RS485 communication
- External power supply, 5-12VDC
- Wireless transmission with AZ289 series data gateway
- Easy to install and maintenance-free
- IP68,10-meter water resistance
- Aerospace aluminum alloy material

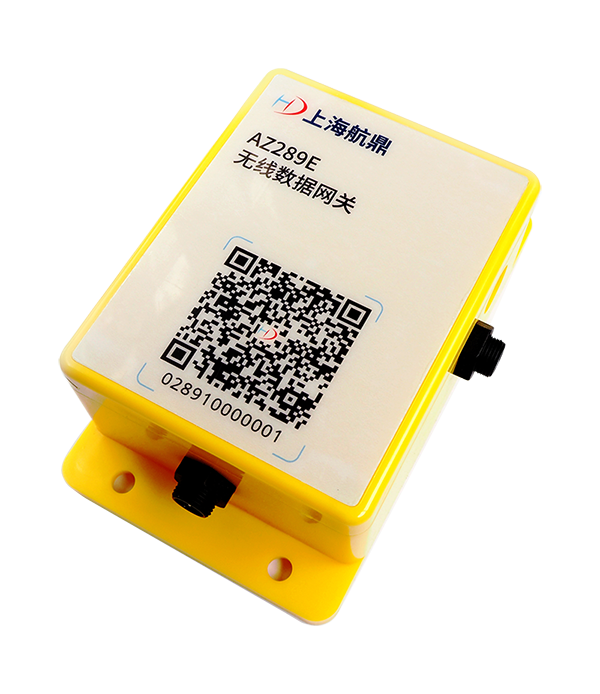

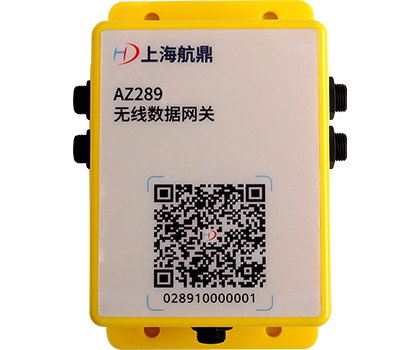

Wireless data gateways
- Dimensions: 147 x 90 x 51 mm
- Power supply, collection and transmission are integrated
- A single channel supports the connection of 48 sensors and supporting smart measuring rods
- 1-channel DO control port output, 1-channel AI signal data acquisition interface
- 2-channel RS485 data acquisition
- NB/4G/WIFI multiple transmissions
- Optional Beidou satellite timing positioning
- Ultra-low power consumption, fully built-in battery, twice a day, continuous use for more than one year
- Directly connected to 6~30W solar panel for power supply, sustainable work
- IP67

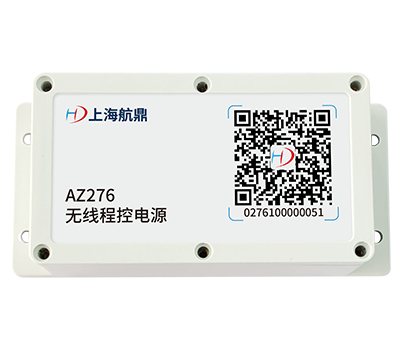

Threadless power supply system
- Dimensions: 198 x 92 x 59 mm
- Remote program control to manage the power supply of each device
- 4 independent controlled 6V or 12VDC outputs
- Explosion-proof battery, can be used in subways, tunnels
- 6V to 12VDC input, direct connection to solar panels
- IP67
Software

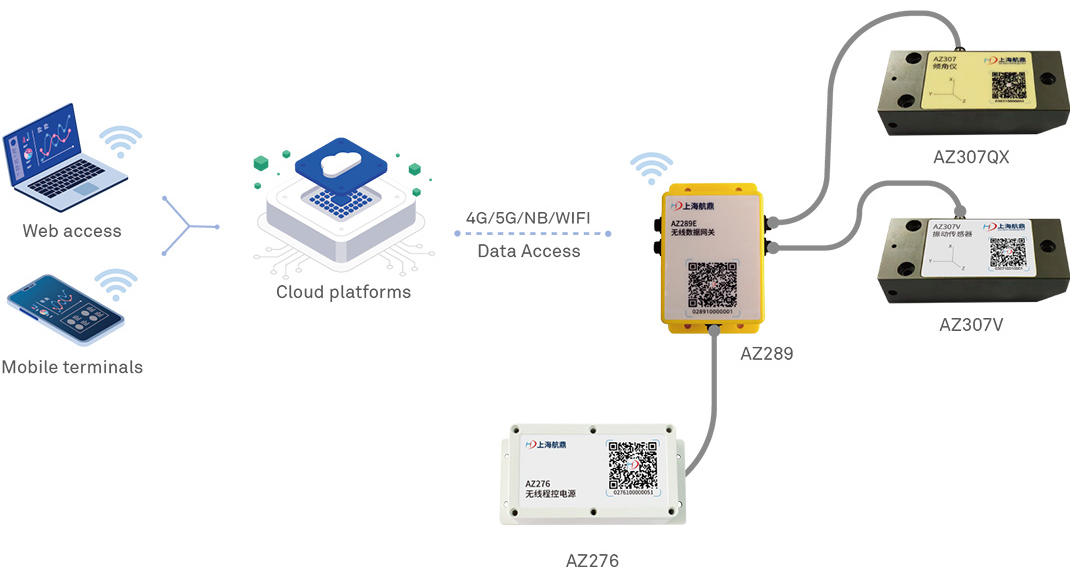

Electronic map + Beidou positioning + cloud computing
Application cases

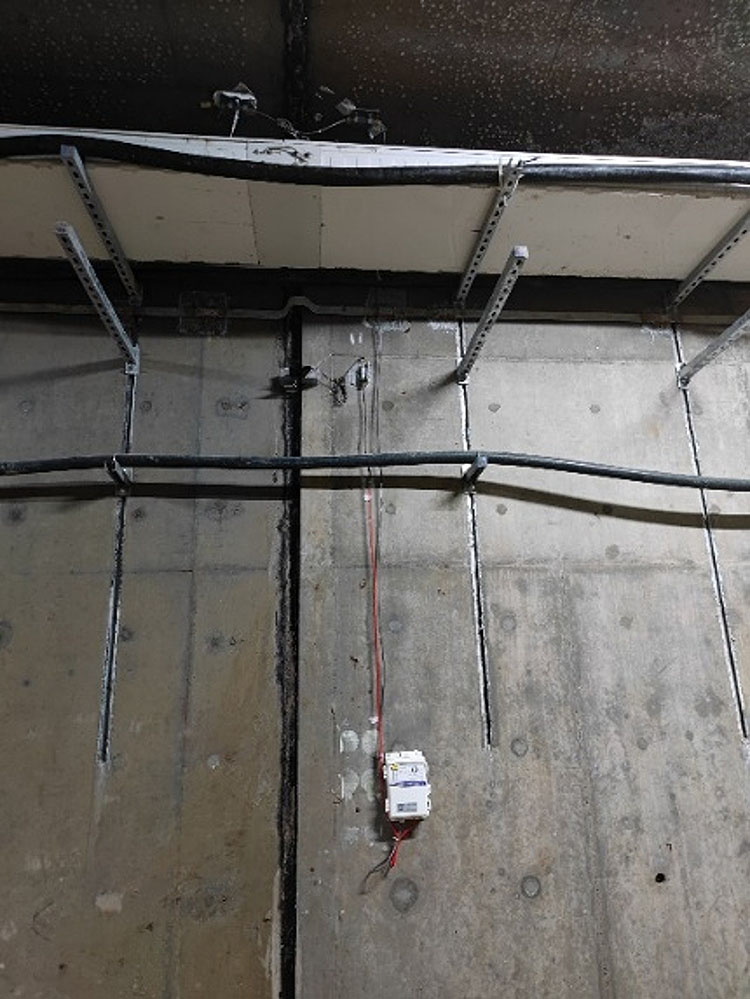

Pipe corridor monitoring project in a district of Shanghai
