Wireless digital monitoring of road collapse
Wireless digital monitoring of road collapse
The installation of inclinometer tubes and the monitoring depth of more than 100 meters is an integrated automatic collection and real-time monitoring system. The loosening and voiding of the lower part of the road are monitored, and the road structure is not damaged during installation, and it can be installed quickly in 10 minutes, with high reliability and low comprehensive cost.
feature
- Minimally invasive installation on the road surface does not damage the road structure
- Installation is quick and easy
- The measuring range is 50mm, and the maximum accuracy is 1mm
- NBIOT wireless transmission with GNSS support
- Real-time monitoring of voiding, loosening and cavity of the lower part of the road
- The battery is replaceable
Hardware
Wireless road collapse monitoring sensor
- Dimensions: Φ 40 x 700 mm or more(rod body)
- Minimally invasive installation on the road surface, without damaging the road structure
- Installation is quick and easy
- Weight 50mm, maximum accuracy 1mm
- NBIOT wireless transmission, which can support GNSS
- Real-time monitoring of soil hollowing, looseness and cavity in the lower part of the road
- Real-time lateral displacement monitoring of soil in the lower part of the road
- monitoring of surface settlement around foundation pits
- billboard movement monitoring
- manhole cover mobile monitoring
- road water monitoring
Software

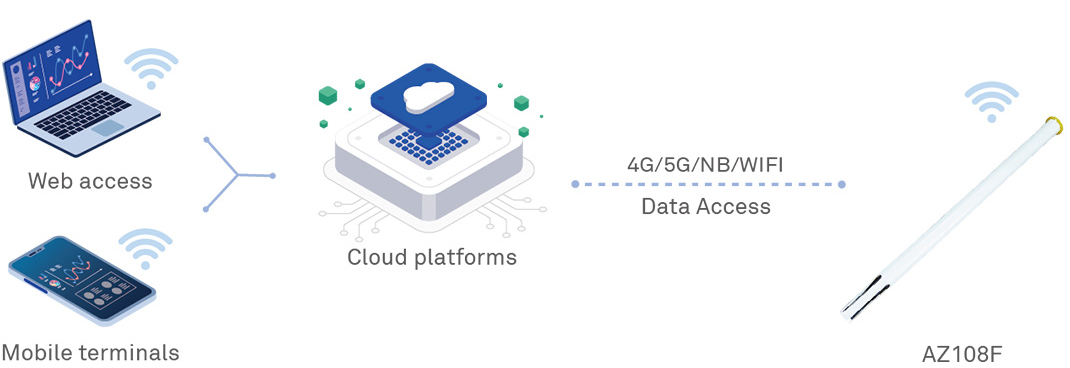

Electronic map + Beidou positioning + cloud computing
Application cases

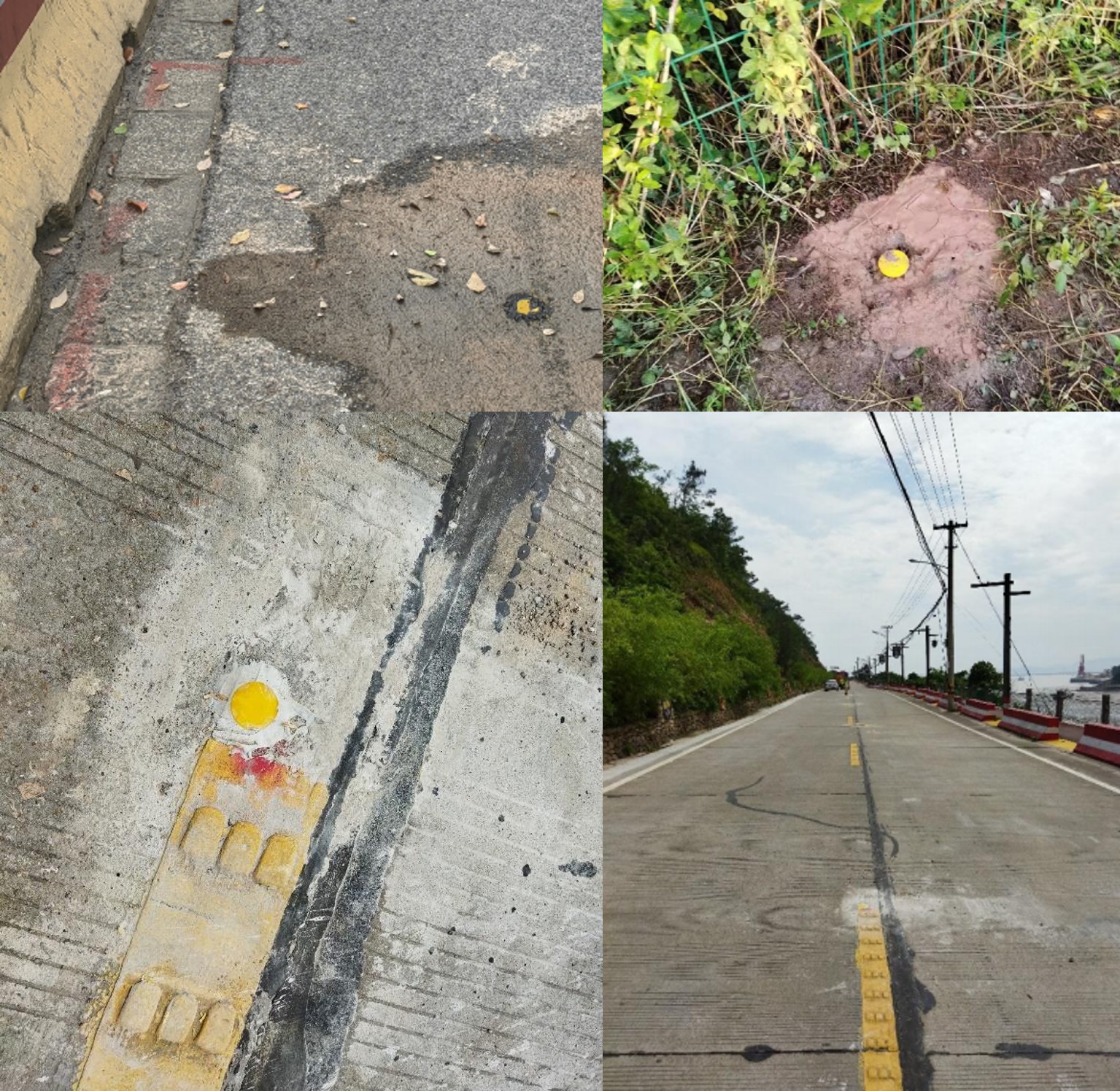

Shanghai Road Land Subsidence Monitoring Project
