Digital acquisition of strains and stresses
Digital acquisition of strains and stresses

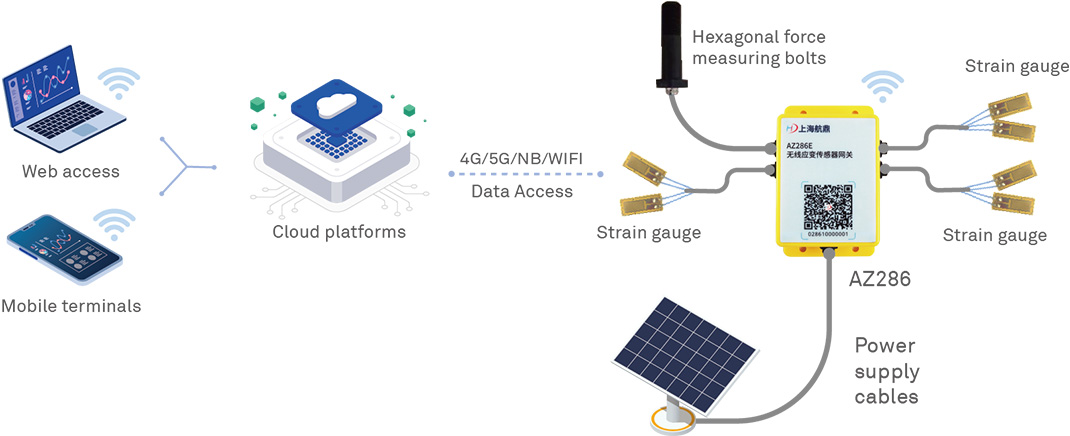

Digital monitoring (inspection) of multi-channel resistive strain gauges (meters).
Wireless digital real-time micro-deformation monitoring, suitable for micro-strain monitoring (inspection) of steel structures and concrete components. High precision, high reliability. Installation is simple and convenient, and the data gateway is installed nearby. No slotting to pull the cable, low comprehensive cost.

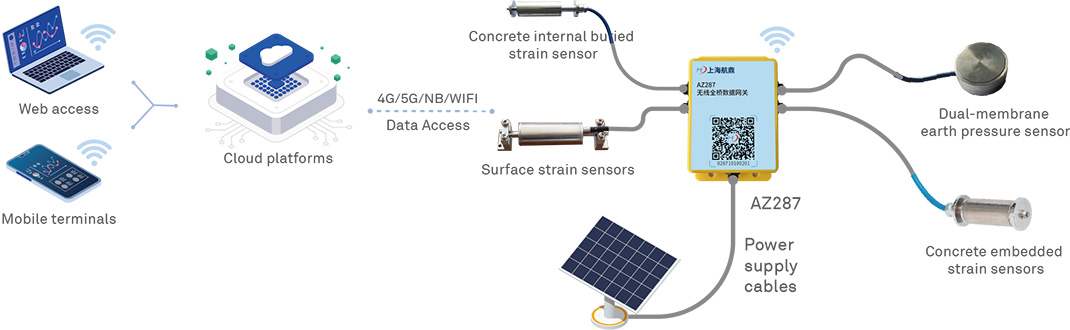

Digital monitoring (inspection) of full-bridge strain sensing
Wireless digital real-time monitoring, micro-deformation monitoring, high precision, high reliability, directly connected to up to 4 mV output strain gauge sensors for use. Installation is simple and convenient, and the data gateway is installed nearby. No slotting to pull the cable, low comprehensive cost
Note: Normal monitoring once every 4 hours, with its own battery to support more than half a year of use. For high-frequency real-time monitoring, an external 12V power supply or solar panel direct power supply is available.
Hardware
Wireless strain sensor gateway
- Dimensions: 147 x 90 x 51 mm
- Power supply, collection and transmission are integrated
- It supports 8 channels of 120 ohm (350 ohm can be customized) strain gauge (flower) data acquisition
- It can be cascaded and powered via a data bus
- NB/4G/WIFI wireless communication mode is optional
- Ultra-low power consumption, fully built-in battery, continuous use twice a day for more than one year
- Support 6~30W solar panel power supply, sustainable work
- IP67

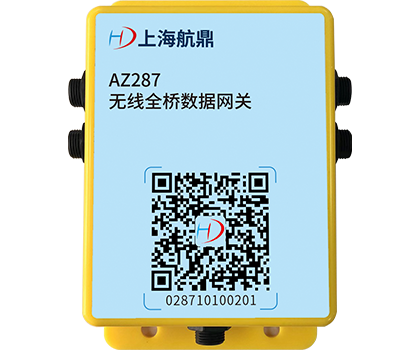

Wireless strain sensor gateway
- Dimensions: 147 x 90 x 51 mm
- Power supply, collection and transmission are integrated
- Supports 4 full-bridge or half-bridge strain gauge sensors
- It can be cascaded and powered via a data bus
- 4G/WIFI wireless communication mode is optional
- Ultra-low power consumption, fully built-in battery
- Directly connected to 6~30W solar panel for power supply, sustainable work
- IP67

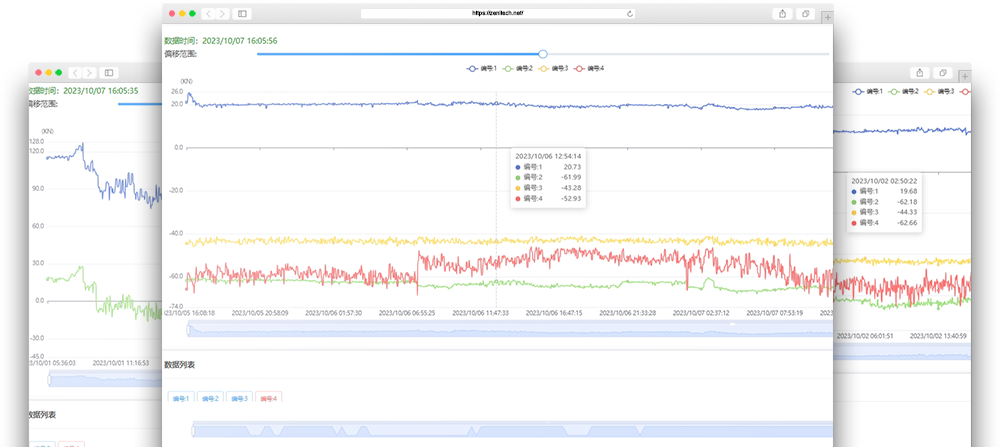

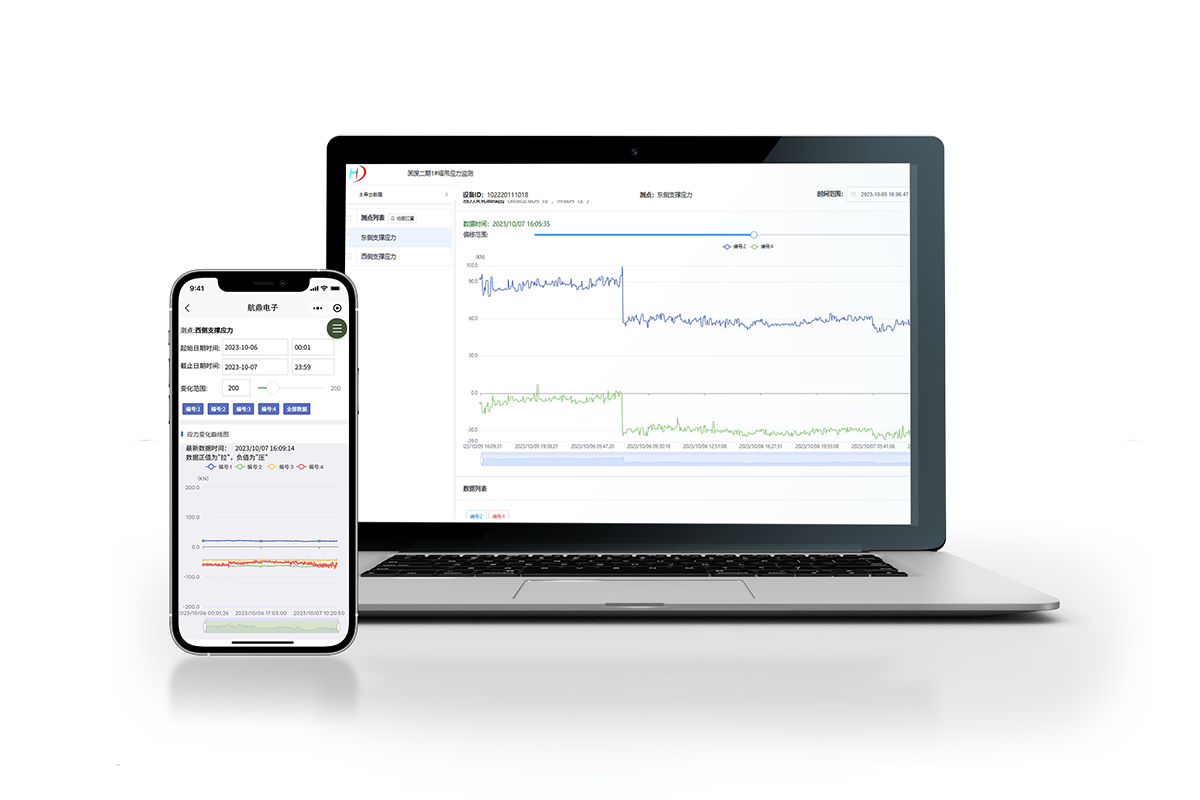

Software
Electronic map + Beidou positioning + cloud computing
