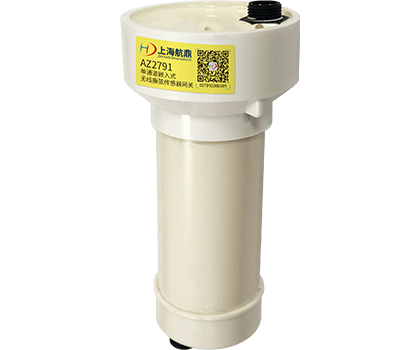

Single-Channel Embedded Wireless Vibrating Wire Sensor Gateway
Single-Channel Embedded Wireless Vibrating Wire Sensor Gateway
The AZ2791 series single-channel embedded wireless vibrating wire sensor gateway is a highly integrated digital acquisition device. It is specifically designed for underground installations where surface installation conditions are not available. Integrating power supply, data acquisition, and transmission into a single unit, it allows for rapid deployment and can be securely mounted at the openings of water level wells and inclinometer tubes. During low-frequency data acquisition, its built-in battery ensures long-term operation.
The AZ2791 series gateway supports the signal acquisition and transmission of most vibrating wire sensors currently available on the market. With an IP68 protection rating, it is highly suitable for continuous outdoor exposure in rugged field environments.
Basic functions
- Dimensions: Φ 63 x 120 mm
- All-in-One Design: Integrates power supply, data acquisition, and transmission
- Sensor Compatibility: 1-channel signal acquisition for integrated temperature/vibrating wire sensors
- Wireless Communication: NB-IoT or 4G (selectable)
- Ultra-low Power Consumption: Powered by a fully built-in battery, lasting over 1 year at a sampling rate of 2 times per day
- Solar Powered: Supports direct power supply from a 6-30W solar panel
- IP68
