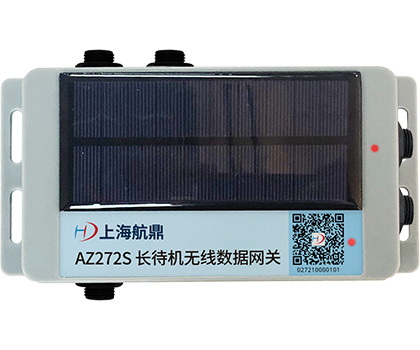

Long Standby Wireless Data Gateway
Long Standby Wireless Data Gateway
The AZ272 series long standby wireless data gateway is a highly integrated digital acquisition device, specifically designed for ground-level installation. Integrating power supply, data acquisition, and transmission into a single unit, it allows for rapid deployment. During low-frequency data acquisition, its built-in battery ensures long-term operation.
This gateway supports the power supply, data acquisition, and transmission of various RS485 interface sensors, current-output transmitters, and full-bridge resistive sensors (optional). With an IP67 protection rating, it is highly suitable for continuous outdoor exposure in rugged field environments.
Basic functions
- Dimensions: 200 x 95 x 64 mm
- All-in-One Design: Integrates power supply, data acquisition, and transmission
- 1-Channel AD Interface: Supports connection to 4-20mA current-output transmitters
- 1-Channel RS485 Interface: Features powered output to support RS485 interface sensors
- Full-Bridge Resistive Sensors: Supported (optional)
- Wireless Communication: NB-IoT, 4G, or LoRa (selectable)
- Built-in Battery Temperature Management: Features intelligent charge/discharge control to withstand harsh environments
- IP67
