Digital monitoring of landslides
Digital monitoring of landslides

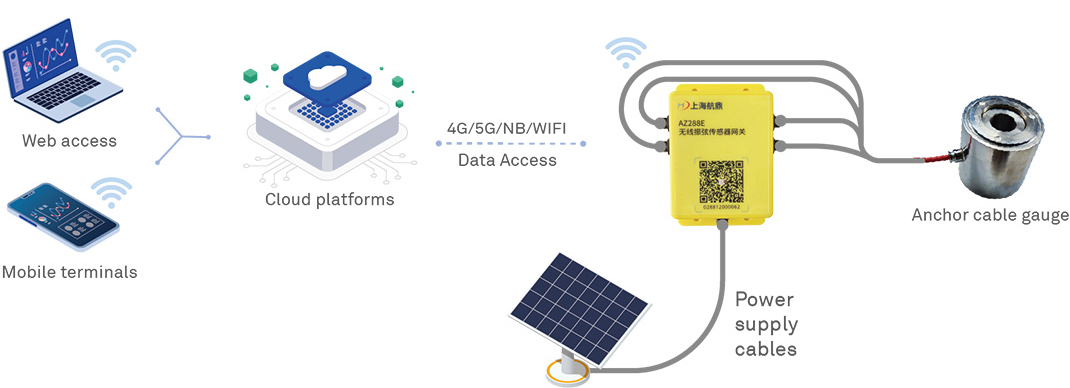

It is composed of wireless vibrating wire sensor gateway (AZ288), anchor cable tension meter and solar panel, which can work stably for a long time; The whole system is IP67 protection.
Attention: If high-frequency real-time monitoring data collection is required, solar panels can be optionally equipped for power supply.
Hardware
Wireless vibrating wire sensor gateway
- Dimensions: 147 x 90 x 51 mm
- Power supply/collection/transmission integration
- 4-channel vibrating wire sensor acquisition, more channels can be customized
- Support all kinds of vibrating wire sensors
- Wired and wireless transmission compatible
- NB/4G/WIFI multiple transmission
- Optional Beidou satellite timing positioning
- It can be cascaded, including communication and power supply
- Ultra-low power consumption, fully built-in battery, twice a day, continuous use for more than one year
- All parameters such as axial force, strain, anchor cable, displacement, earth pressure, water level, temperature, reaction force, seepage pressure, etc
- IP67
Software
Electronic map + Beidou positioning + cloud computing
Application cases

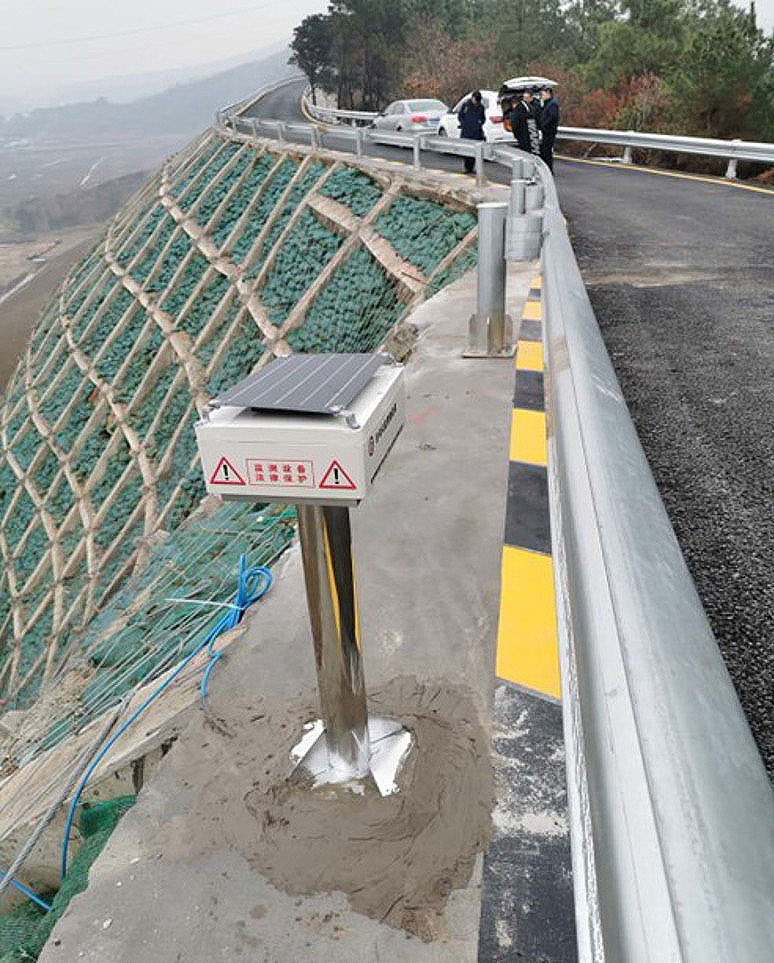

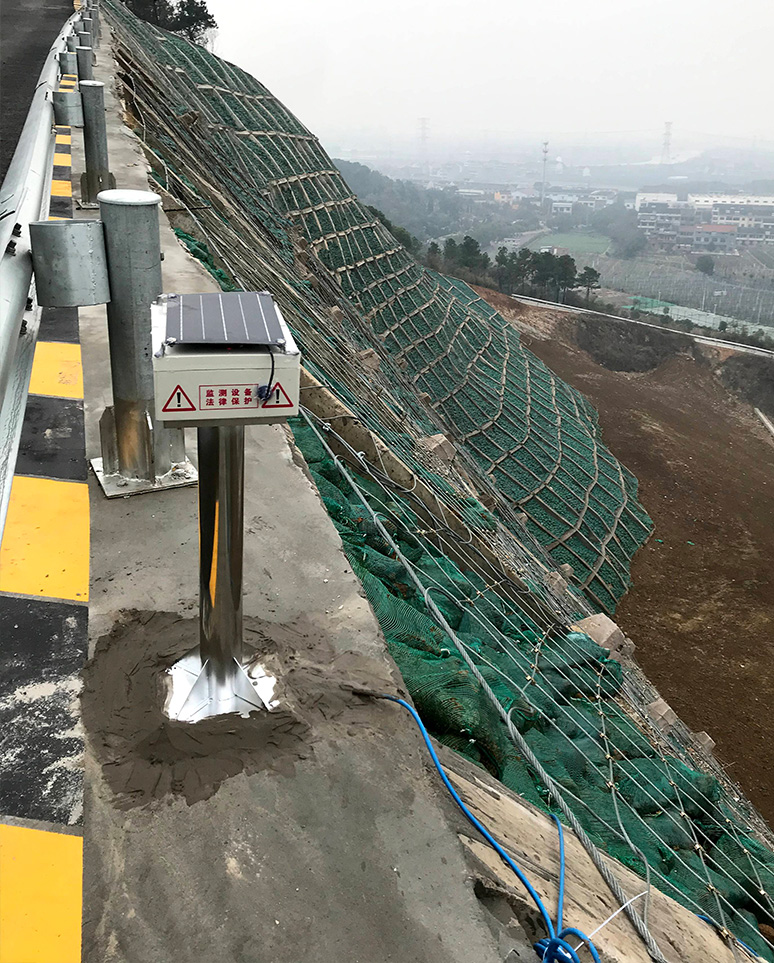

Liyang City Slope Monitoring Project
